In June 2025, we carried out repairs to a Warehouse roof in Ash Vale, Aldershot, Hampshire.
A bad leak occurred at the end of a gutter where the gutter lowered and turned so water could drain into a hopper box.
The gutter liner at this point had been cut and at the change of height and angle water poured down the inside of the wall.
To cure the problem, we fitted a purpose manufactured, pre welded aluminium gutter tray to the end of the gutter.
We also fitted a new steel gable flashing and 2 no. overlay sheets to ensure the area is effectively sealed.
There were also 5 no. old disused flues in the roof, some of which were leaking.
We removed the 5 no. old flues, lowered them to ground level and fitted new overlay sheets to cover the holes. To the inside we fitted new plasterboard liner panels.

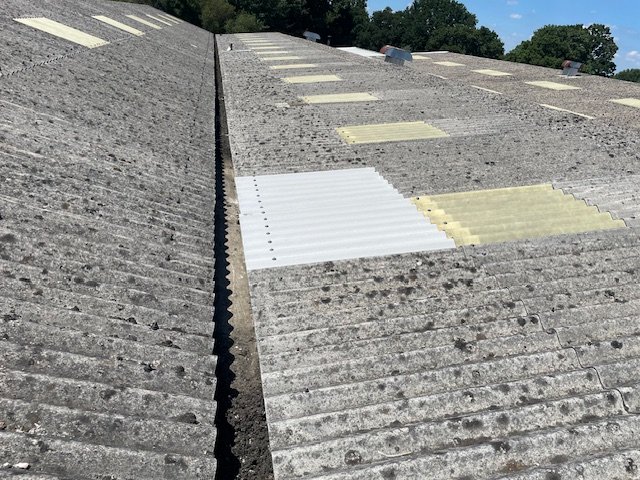

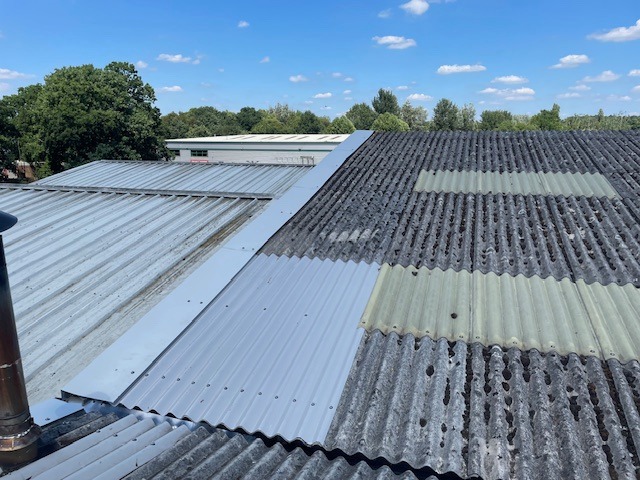

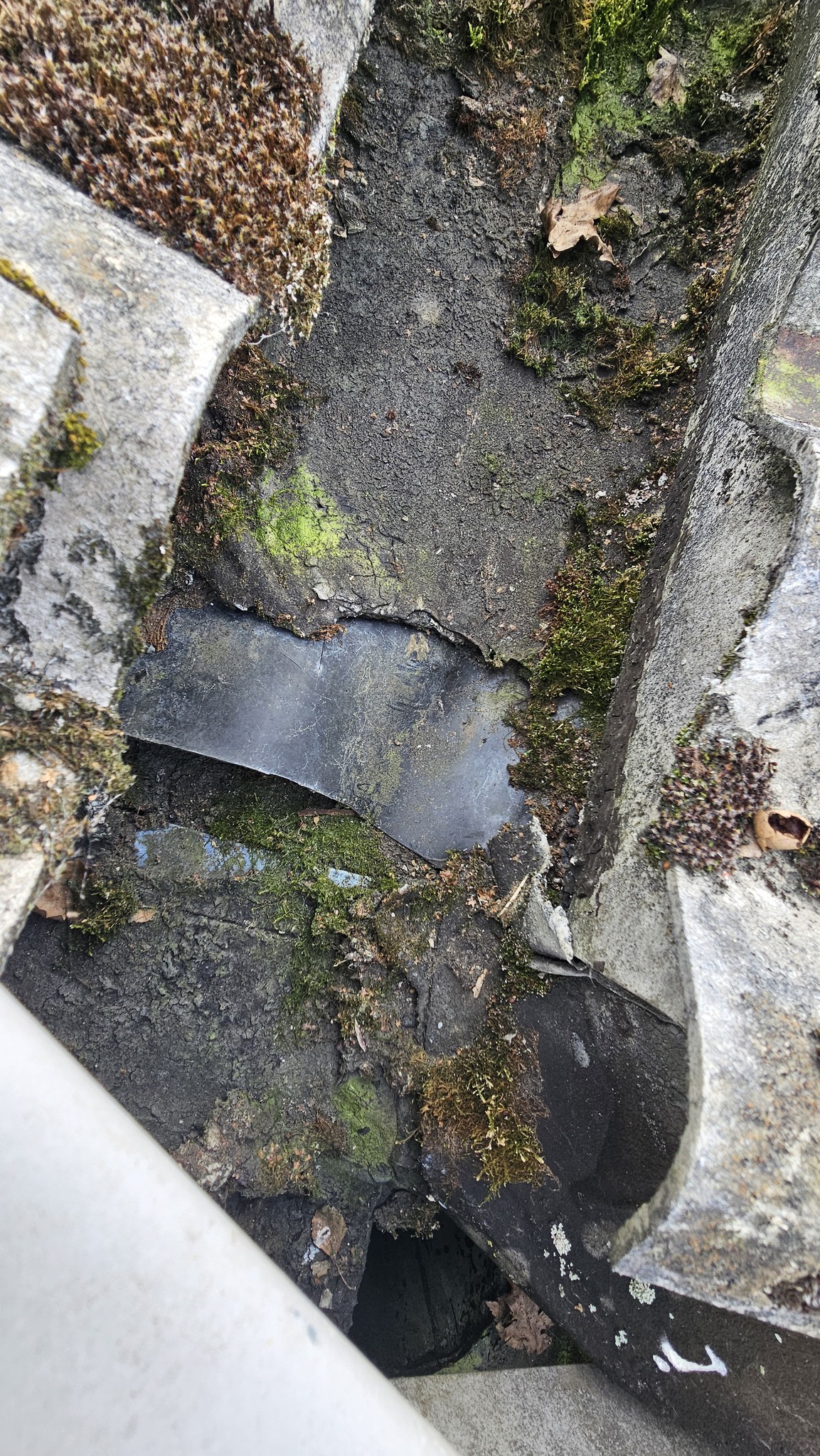

The first 3 no. pictures show the finished gutter and the overlay sheets, whilst the 4th picture shows the original gutter detail.
